VC001-3S

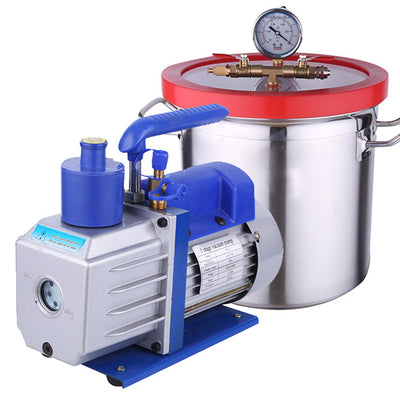

Vacuum pump Set with 2/3/5 galloon vacuum chamber For Degassing Silicone, Resin

3 items left

Vacuum pump Set with 2/3/5 galloon vacuum chamber For Degassing Silicone, Resin

Features:

- High Quality Capacitor: Anti surge, ensure the stability of machine output.

- Visual Oil Tank: Convenient for you to detect the oil level and prevent the motor from burning due to oil shortage.

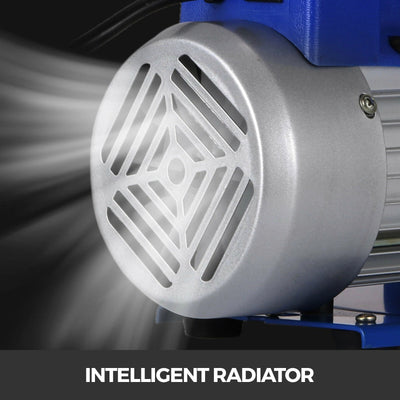

- Built-in Intelligent Radiator: Quickly dissipate heat, maintain efficient operation and extend service life.

- Anti-vibration Base: Buffer vibration, allow vacuum pump more quiet and safe operation.

- Aluminum Alloy Body

* Vacuum pump oil included in the box *

Vacuum Pump specification
2 Gallon Set :
Single Stage vacuum Pump
Voltage : 220V/50HZ
Free air displacement : 2.5CFM
Max Pressure:5PA
RPM:1440RPM(220V)
HorsePower:1/4HP(220W)
Oil Capacity:220ML
Dimensions ; 260mm x 110mm x 240mm
Pump Weight:7KG

Vacuum chamber size: 2 gallon 220mm(diameter)*200mm

3 Gallon Set :
Single Stage vacuum Pump
Voltage : 220V/50HZ
Free air displacement : 4.5CFM
Max Pressure:5PA
RPM:1440RPM(220V)
HorsePower:1/3HP(250W)
Oil Capacity:250ML
Dimensions : 290mm x 120mm x 240mm
Pump Weight:9.5KG

Vacuum chamber size: 3 gallon 220mm(diameter)*280

5 Gallon Set :
Single Stage vacuum Pump
Voltage : 220V/50HZ
Free air displacement : 8CFM
Max Pressure:5PA
RPM:1440RPM(220V)
HorsePower:3/4HP(250W)
Oil Capacity:300ML
Dimensions : 360mm x 135mm x 270mm
Pump Weight:13KG

Vacuum chamber size: 5 gallon 280mm(diameter)*300mm
